MZ Guardrail under covering fixture with Z-shaped base

NF E 85-015 : 2019 – EN ISO 14122-3 : 2016

The M-SAFE guardrail under covering fixture with Z-shaped base allows the conformity of terraces inaccessible to the public in the case of a parapet with a wall cover with or without insulation. It is fixed to the top of the parapet and thus preserves the watertightness of the complex.

The M-SAFE guardrail under covering fixture with z-shaped base is easy to assemble:

  • Handrail fixing system, by means of a plastic cap.
  • Hole in the uprights for fixing the knee-rail.
  • Handrail and knee-rails delivered in packs of 7 and 5 units, assembly by means of reduced ends.

Handrail Ø Screw
Upright cap with fixing system

Knee-rail = Two options

Knee-rail through the uprights
Adjustable knee-rail

Bases

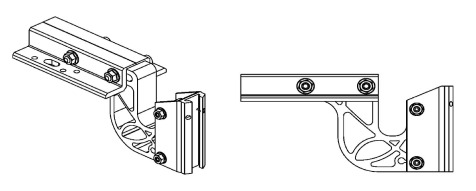

The Z-shaped base is available in a straight version or inclined at 25° (pre-assembled in the factory).

PRACTICAL : Thanks to its design, change from the straight to the inclined version directly on site. Remove the upper screw from the base, tilt it forward (for the inclined version) or backward (for the straight version) and screw everything back together.

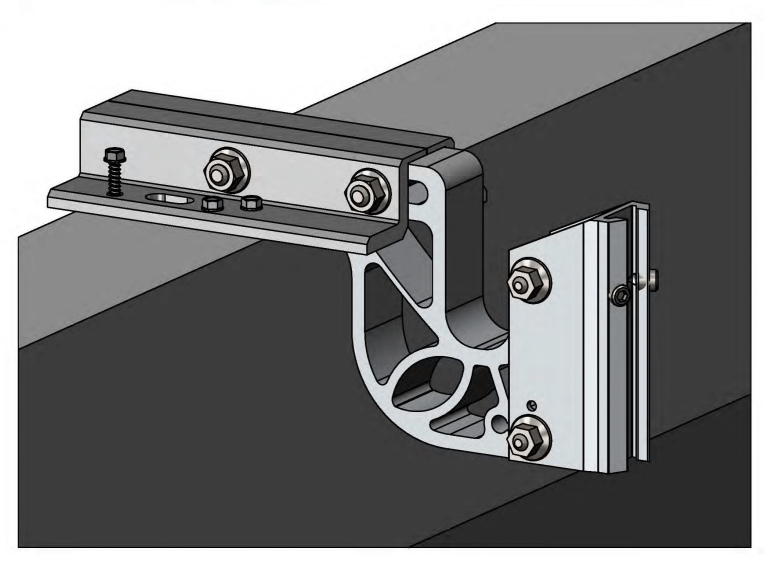

A z-shaped base for all configurations:

  • Z-shaped base: an economical base ideal for uninsulated parapets.
  • Z0-shaped base: quipped with a sliding system, it adapts to an insulated parapet up to 15 mm.
  • Z100-shaped base: equipped with a sliding system, it adapts to an insulated parapet up to 100 mm.
  • Z160-shaped base: equipped with a sliding system, it adapts to an insulated parapet up to 160 mm.
Straight Z-shaped base
25° inclined Z version Sabot

Dimensions of the supports

Z-shaped base for non-insulated parapet Fixing on non-cracked concrete parapet c20/c25 thanks to 1 x M12 plug.

Z0-shaped base for insulated parapet Fixing on non-cracked concrete parapet c20/c25 thanks to 2 x M10 plugs.

Z100-shaped base for insulated parapet up to 100 mm Fixing on non-cracked concrete parapet c20/c25 by 2 M10 plugs.

Z160-shaped base Fixing on non-cracked concrete parapet c20

Fixing on steel parapet (Z0, Z100 and Z160-shaped bases):

With 6 self-drilling screws, subject to a prior study carried out by our technical office to determine the stresses and the feasibility depending on the support, as well as the validation of the screw supplier.

Installation (See instructions)

  • Distance between uprights: 1500 mm.
  • Minimum height of the parapet 100 mm for straight z, 140 mm for the inclined version.
  • Self-drilling screw Ø4.8 x32 mm hexagonal head:
    • -Fixing the knee-rail to the upright.
    • -Fixing the accessories (angle, cap, end plug) to the handrail and knee-rail.
    • -Fixing the reduced ends to the handrail and knee-rail.
  • M8 x 35 mm socket screw (x2):
    • -Screwing the base to the upright.
Ref. MZGuardrail with under-roof fixed system with standard Z Base
With standard posts equipped with a hole for the knee-rail
MZ-S1M-SAFE guardrail with under-roof fixed system with standard Z Base and straight post, only with handrail
MZ-S2M-SAFE guardrail with under-roof fixed system with standard Z Base and straight post, with handrail and knee-rail
MZ-S3M-SAFE guardrail with under-roof fixed system with standard Z Base and straight post, with handrail, knee-rail, and toe board
MZ-S4M-SAFE guardrail with under-roof fixed system with standard Z Base and straight post, with handrail, two knee-rails, and toe board
MZ-I1M-SAFE guardrail with under-roof fixed system with standard Z Base and inclined post, only with handrail
MZ-I2M-SAFE guardrail with under-roof fixed system with standard Z Base and inclined post, with handrail and knee-rail
MZ-I3M-SAFE guardrail with under-roof fixed system with standard Z Base and inclined post, with handrail, knee-rail, and toe board
MZ-I4M-SAFE guardrail with under-roof fixed system with standard Z Base and inclined post, with handrail, two knee-rails, and toe board
Ref. MZAGuardrail with under-roof fixed system with standard Z Base
With posts without a hole for height-adjustable knee-rail
MZA-S1M-SAFE guardrail with under-roof fixed system with standard Z Base and straight post, only with handrail
MZA-S2M-SAFE guardrail with under-roof fixed system with standard Z Base and straight post, with handrail and knee-rail
MZA-S3M-SAFE guardrail with under-roof fixed system with standard Z Base and straight post, with handrail, knee-rail, and toe board
MZA-S4M-SAFE guardrail with under-roof fixed system with standard Z Base and straight post, with handrail, two knee-rails, and toe board
MZA-I1M-SAFE guardrail with under-roof fixed system with standard Z Base and inclined post, only with handrail
MZA-I2M-SAFE guardrail with under-roof fixed system with standard Z Base and inclined post, with handrail and knee-rail
MZA-I3M-SAFE guardrail with under-roof fixed system with standard Z Base and inclined post, with handrail, knee-rail, and toe board
MZA-I4M-SAFE guardrail with under-roof fixed system with standard Z Base and inclined post, with handrail, two knee-rails, and toe board
Ref. MZ0Guardrail with under-roof fixed system with Z0 Base (0 mm offset)
With standard posts equipped with a hole for the knee-rail
MZ0-S1M-SAFE guardrail with under-roof fixed system with Z0 Base (0 mm offset) and straight post, only with handrail
MZ0-S2M-SAFE guardrail with under-roof fixed system with Z0 Base (0 mm offset) and straight post, with handrail and knee-rail
MZ0-S3M-SAFE guardrail with under-roof fixed system with Z0 Base (0 mm offset) and straight post, with handrail, knee-rail, and toe board
MZ0-S4M-SAFE guardrail with under-roof fixed system with Z0 Base (0 mm offset) and straight post, with handrail, two knee-rails, and toe board
MZ0-I1M-SAFE guardrail with under-roof fixed system with Z0 Base (0 mm offset) and inclined post, only with handrail
MZ0-I2M-SAFE guardrail with under-roof fixed system with Z0 Base (0 mm offset) and inclined post, with handrail and knee-rail
MZ0-I3M-SAFE guardrail with under-roof fixed system with Z0 Base (0 mm offset) and inclined post, with handrail, knee-rail, and toe board
MZ0-I4M-SAFE guardrail with under-roof fixed system with Z0 Base (0 mm offset) and inclined post, with handrail, two knee-rails, and toe board
Ref. MZ0AGuardrail with under-roof fixed system with Z0 Base (0 mm offset)
With posts without a hole for height-adjustable knee-rail
MZ0A-S1M-SAFE guardrail with under-roof fixed system with Z0 Base (0 mm offset) and straight post, only with handrail
MZ0A-S2M-SAFE guardrail with under-roof fixed system with Z0 Base (0 mm offset) and straight post, with handrail and knee-rail
MZ0A-S3M-SAFE guardrail with under-roof fixed system with Z0 Base (0 mm offset) and straight post, with handrail, knee-rail, and toe board
MZ0A-S4M-SAFE guardrail with under-roof fixed system with Z0 Base (0 mm offset) and straight post, with handrail, two knee-rails, and toe board
MZ0A-I1M-SAFE guardrail with under-roof fixed system with Z0 Base (0 mm offset) and inclined post, only with handrail
MZ0A-I2M-SAFE guardrail with under-roof fixed system with Z0 Base (0 mm offset) and inclined post, with handrail and knee-rail
MZ0A-I3M-SAFE guardrail with under-roof fixed system with Z0 Base (0 mm offset) and inclined post, with handrail, knee-rail, and toe board
MZ0A-I4M-SAFE guardrail with under-roof fixed system with Z0 Base (0 mm offset) and inclined post, with handrail, two knee-rails, and toe board
Ref. MZ100Guardrail with under-roof fixed system with Z100 Base (100 mm offset)
With standard posts equipped with a hole for the knee-rail
MZ100-S1M-SAFE guardrail with under-roof fixed system with Z100 Base (100 mm offset) and straight post, only with handrail
MZ100-S2M-SAFE guardrail with under-roof fixed system with Z100 Base (100 mm offset) and straight post, with handrail and knee-rail
MZ100-S3M-SAFE guardrail with under-roof fixed system with Z100 Base (100 mm offset) and straight post, with handrail, knee-rail, and toe board
MZ100-S4M-SAFE guardrail with under-roof fixed system with Z100 Base (100 mm offset) and straight post, with handrail, two knee-rails, and toe board
MZ100-I1M-SAFE guardrail with under-roof fixed system with Z100 Base (100 mm offset) and inclined post, only with handrail
MZ100-I2M-SAFE guardrail with under-roof fixed system with Z100 Base (100 mm offset) and inclined post, with handrail and knee-rail
MZ100-I3M-SAFE guardrail with under-roof fixed system with Z100 Base (100 mm offset) and inclined post, with handrail, knee-rail, and toe board
MZ100-I4M-SAFE guardrail with under-roof fixed system with Z100 Base (100 mm offset) and inclined post, with handrail, two knee-rails, and toe board
Ref. MZ100AGuardrail with under-roof fixed system with Z100 Base (100 mm offset)
With posts without a hole for height-adjustable knee-rail
MZ100A-S1M-SAFE guardrail with under-roof fixed system with Z100 Base (100 mm offset) and straight post, only with handrail
MZ100A-S2M-SAFE guardrail with under-roof fixed system with Z100 Base (100 mm offset) and straight post, with handrail and knee-rail
MZ100A-S3M-SAFE guardrail with under-roof fixed system with Z100 Base (100 mm offset) and straight post, with handrail, knee-rail, and toe board
MZ100A-S4M-SAFE guardrail with under-roof fixed system with Z100 Base (100 mm offset) and straight post, with handrail, two knee-rails, and toe board
MZ100A-I1M-SAFE guardrail with under-roof fixed system with Z100 Base (100 mm offset) and inclined post, only with handrail
MZ100A-I2M-SAFE guardrail with under-roof fixed system with Z100 Base (100 mm offset) and inclined post, with handrail and knee-rail
MZ100A-I3M-SAFE guardrail with under-roof fixed system with Z100 Base (100 mm offset) and inclined post, with handrail, knee-rail, and toe board
MZ100A-I4M-SAFE guardrail with under-roof fixed system with Z100 Base (100 mm offset) and inclined post, with handrail, two knee-rails, and toe board
Ref. MZ160Guardrail with under-roof fixed system with Z160 Base (160 mm offset)
With standard posts equipped with a hole for the knee-rail
MZ160-S1M-SAFE guardrail with under-roof fixed system with Z160 Base (160 mm offset) and straight post, only with handrail
MZ160-S2M-SAFE guardrail with under-roof fixed system with Z160 Base (160 mm offset) and straight post, with handrail and knee-rail
MZ160-S3M-SAFE guardrail with under-roof fixed system with Z160 Base (160 mm offset) and straight post, with handrail, knee-rail, and toe board
MZ160-S4M-SAFE guardrail with under-roof fixed system with Z160 Base (160 mm offset) and straight post, with handrail, two knee-rails, and toe board
MZ160-I1M-SAFE guardrail with under-roof fixed system with Z160 Base (160 mm offset) and inclined post, only with handrail
MZ160-I2M-SAFE guardrail with under-roof fixed system with Z160 Base (160 mm offset) and inclined post, with handrail and knee-rail
MZ160-I3M-SAFE guardrail with under-roof fixed system with Z160 Base (160 mm offset) and inclined post, with handrail, knee-rail, and toe board
MZ160-I4M-SAFE guardrail with under-roof fixed system with Z160 Base (160 mm offset) and inclined post, with handrail, two knee-rails, and toe board
Ref. MZ160AM-SAFE guardrail with under-roof fixed system with Z160 Base (160 mm offset)
With posts without a hole for height-adjustable knee-rail
MZ160A-S1M-SAFE guardrail with under-roof fixed system with Z160 Base (160 mm offset) and straight post, only with handrail
MZ160A-S2M-SAFE guardrail with under-roof fixed system with Z160 Base (160 mm offset) and straight post, with handrail and knee-rail
MZ160A-S3M-SAFE guardrail with under-roof fixed system with Z160 Base (160 mm offset) and straight post, with handrail, knee-rail, and toe board
MZ160A-S4M-SAFE guardrail with under-roof fixed system with Z160 Base (160 mm offset) and straight post, with handrail, two knee-rails, and toe board
MZ160A-I1M-SAFE guardrail with under-roof fixed system with Z160 Base (160 mm offset) and inclined post, only with handrail
MZ160A-I2M-SAFE guardrail with under-roof fixed system with Z160 Base (160 mm offset) and inclined post, with handrail and knee-rail
MZ160A-I3M-SAFE guardrail with under-roof fixed system with Z160 Base (160 mm offset) and inclined post, with handrail, knee-rail, and toe board
MZ160A-I4M-SAFE guardrail with under-roof fixed system with Z160 Base (160 mm offset) and inclined post, with handrail, two knee-rails, and toe board
