MM Aluminium railing with fixing on dry sheet metal roofing

NF E 85-015 : 2019 – EN ISO 14122-3 : 2016

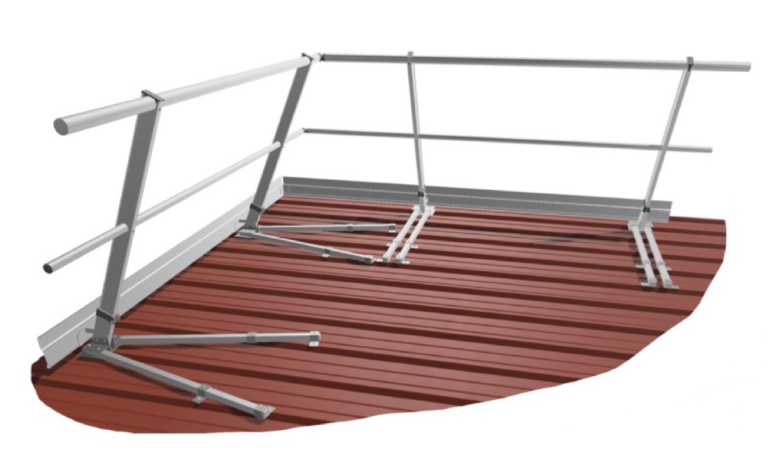

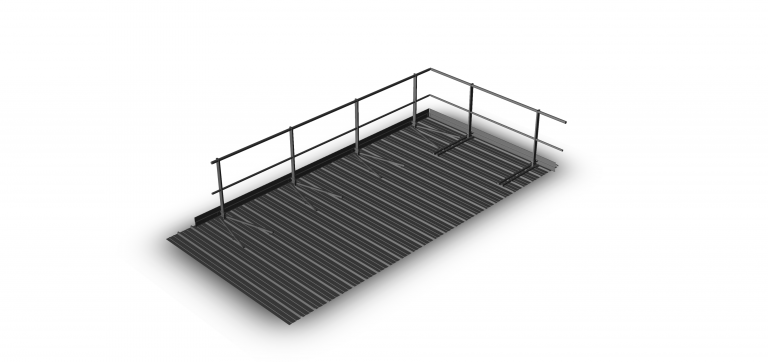

The M-SAFE aluminium railing with fixing on dry sheet metal roofing allows the adaptation of inaccessible metal terraces for public use. It is fixed directly onto the sheet metal with a minimum thickness of 40/100, thus avoiding any cutting or repair of the waterproofing. It adapts to corrugations between 100 and 500 mm in any direction of the sheet.

The M-SAFE railing is easy to install:

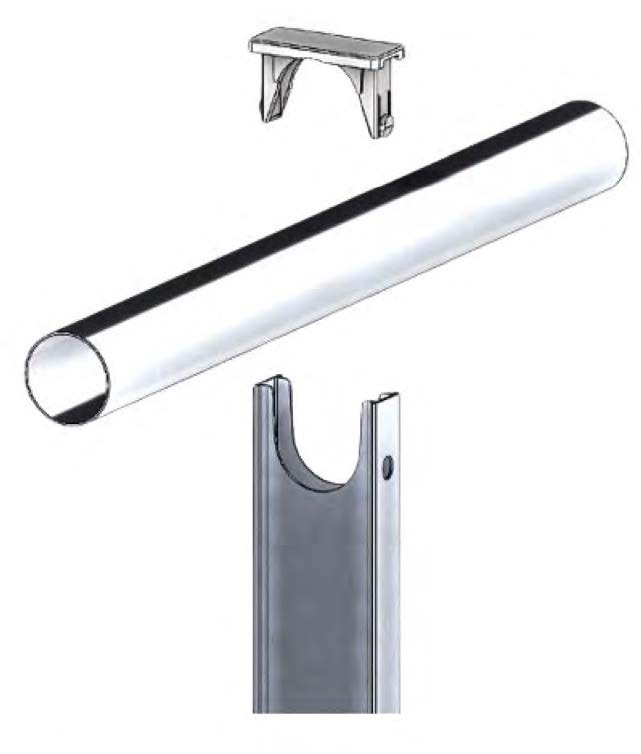

Handrail fixing system, using a plastic cap

Hole in the uprights for fixing the intermediate tubes

Handrails and intermediate tubes delivered in packs of 7 and 5 units, assembly using reduced ends

Handrail Ø Screw

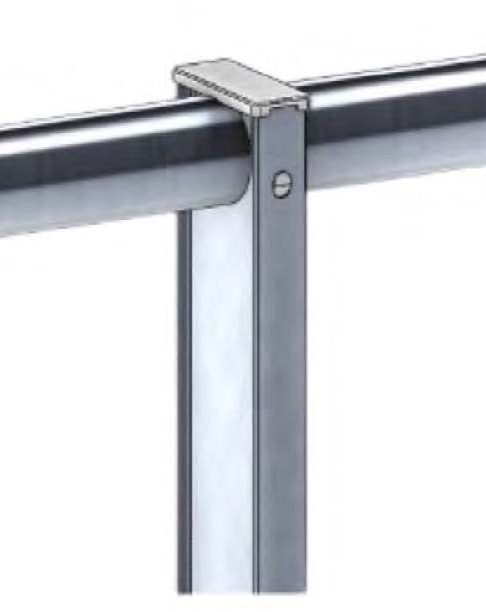

Upright cap with fixing system

Knee-rail = Two options

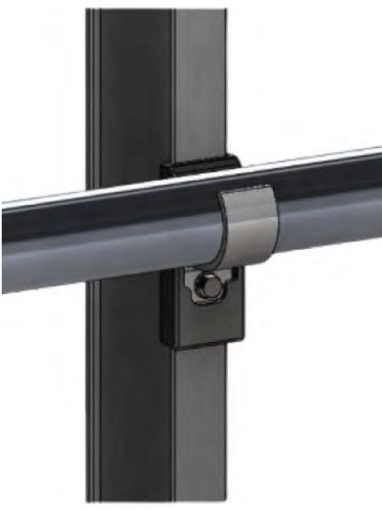

Adjustable knee-rail
Knee-rail through the uprights

Bases

NEW: The inclination of the railing is ensured by the base, available in straight or 25° inclined versions

Unique design on the market = The base adapts to corrugated sheets up to 500 mm and can be installed in both directions on the sheet.

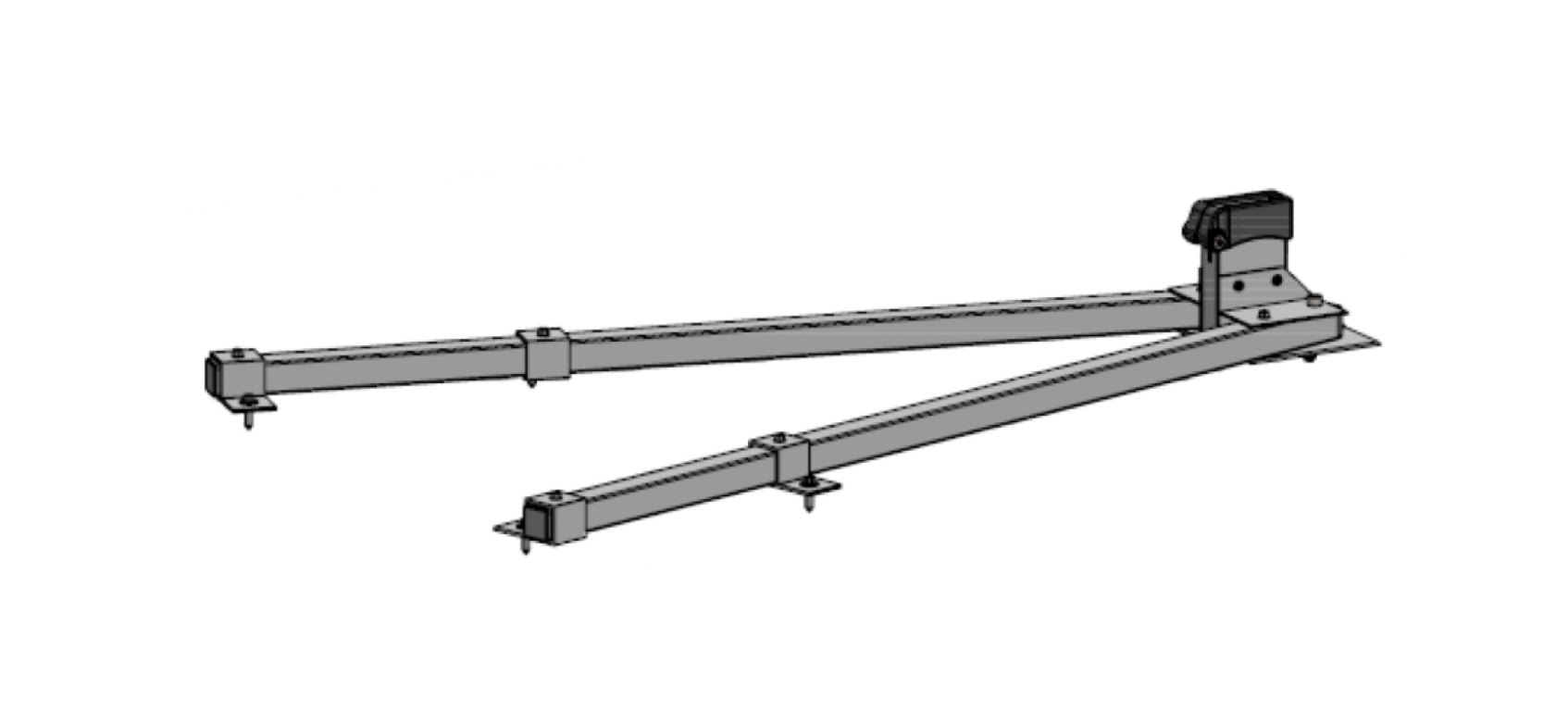

Straight steel sheet base

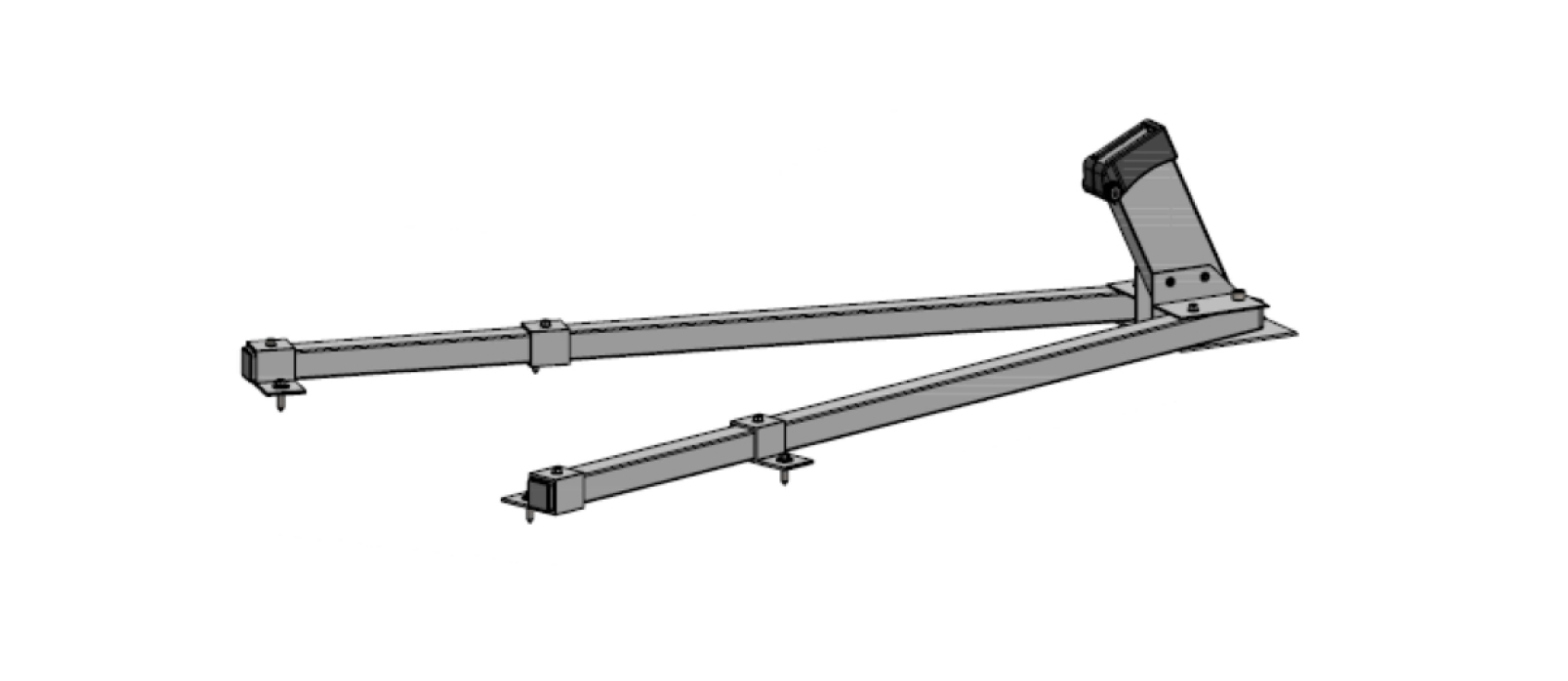

Inclined steel sheet base at 25°

Fixing

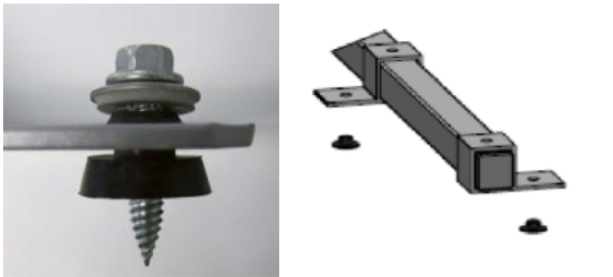

Fixing to the sheet with 5 Drilinox DBS2 screws with waterproof washers and chimney washers.

The Drillnox DBS2 6×2’7 screw expels material inwards, forming a burr, which increases the implantation length.

The threading torque is high even on thin materials (> 5 N.m compared to an average of 1.5 N.m for standard self-drilling screws).

Toe-board option

  • In case of a parapet < 100 mm, a toe board must be provided.
    • Aluminum toe board H 180 mm

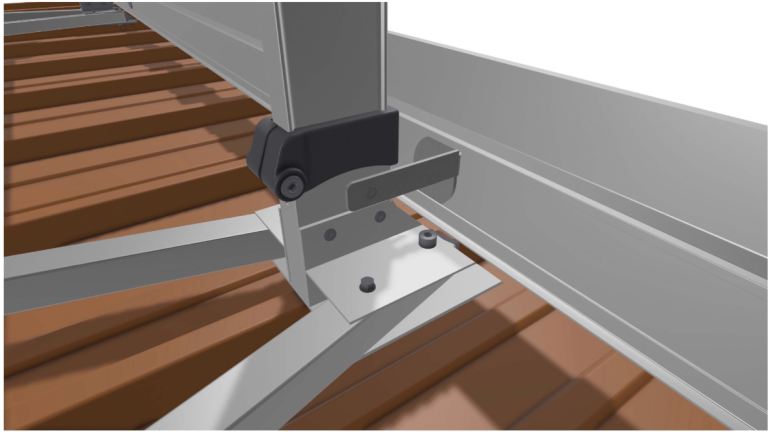

    • Toe board support for BE base
    • Toe board joint fixation: 2 M8×10 mm stud screws
    • Toe board angle fixation: 2 M8×10 mm stud screws

Instalation (See instructions)

  • Distance between uprights: 1500 mm max
  • Maximum roof slope: 15°
  • Self-drilling screw 4.8×32 mm hexagonal head:
    • -Fixing the intermediate tube to the upright
    • -Fixing accessories (angle, cap, end cap) to the handrail and intermediate tube
    • -Fixing the reduced ends of the handrail and intermediate tube
  • CHC screw 8×45 (pre-assembled):
    • -Screwing the base to the upright
Ref. MMAluminium railing with fixing on dry sheet metal roofing
With standard uprights fitted with a hole for the intermediate tube
MM-S2M-SAFE railing with fixing on dry sheet metal roofing, straight uprights, handrail, and intermediate tube
MM-S3M-SAFE railing with fixing on dry sheet metal roofing, straight uprights, handrail, intermediate tube, and toe board
MM-S4M-SAFE railing with fixing on dry sheet metal roofing, straight uprights, handrail, two intermediate tubes, and toe board
MM-I2M-SAFE railing with fixing on dry sheet metal roofing, inclined uprights, handrail, and intermediate tube
MM-I3M-SAFE railing with fixing on dry sheet metal roofing, inclined uprights, handrail, intermediate tube, and toe board
MM-I4M-SAFE railing with fixing on dry sheet metal roofing, inclined uprights, handrail, two intermediate tubes, and toe board
Ref. MMAAluminium railing with fixing on dry sheet metal roofing
With uprights without a hole for height-adjustable intermediate tubes
MMA-S2M-SAFE railing with fixing on dry sheet metal roofing, straight uprights, handrail, and intermediate tube
MMA-S3M-SAFE railing with fixing on dry sheet metal roofing, straight uprights, handrail, intermediate tube, and toe board
MMA-S4M-SAFE railing with fixing on dry sheet metal roofing, straight uprights, handrail, two intermediate tubes, and toe board
MMA-I2M-SAFE railing with fixing on dry sheet metal roofing, inclined uprights, handrail, and intermediate tube
MMA-I3M-SAFE railing with fixing on dry sheet metal roofing, inclined uprights, handrail, intermediate tube, and toe board
MMA-I4M-SAFE railing with fixing on dry sheet metal roofing, inclined uprights, handrail, two intermediate tubes, and toe board
