MF Self-supporting aluminum railing

NF E 85-015 : 2019 – EN ISO 14122-3 : 2016

The M-SAFE freestanding guardrail is the solution to comply with technical roofing regulations when fixing is impossible. It avoids any drilling intervention. According to the NF E 85-015:2019 standard, the freestanding guardrail is not suitable for new construction, renovation and waterproofing work, or when mechanical fixing is possible. The freestanding system can be installed on terraces with a maximum slope of 15º (or 10º parallel to the longitudinal axis of the handrail).

The M-SAFE freestanding guardrail is easy to install:

  • Handrail fixing system, using a plastic plug.
  • Support leg with factory-pre-assembled base.
  • Drilling in the uprights for fixing the knee-rails.
  • Handrails and knee-rail delivered in packs of 7 and 5 units, assembly using reduced ends.

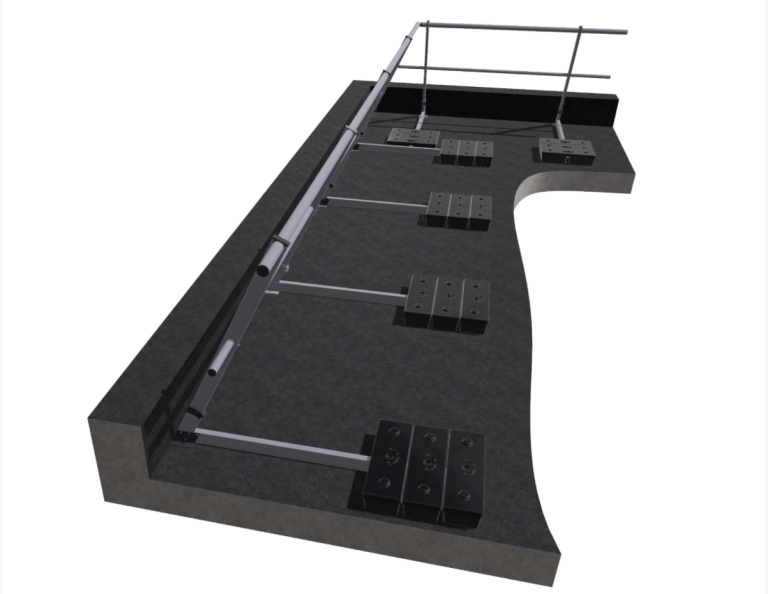

Counterweight of 12.5 kg per unit with a unique design (84 units per pallet – 1200 kg):

  • Norm NF E85-015: 2019 = 3 counterweights per support leg.
  • Norm EN14122-3: 2016 = 2 counterweights per support leg (3 for each support leg where there is an angle and a plug end).

Handrail Ø Screw
Upright cap with fixing system

Knee-rail = Two options

Adjustable knee-rail
Knee-rail through the uprights

Bases

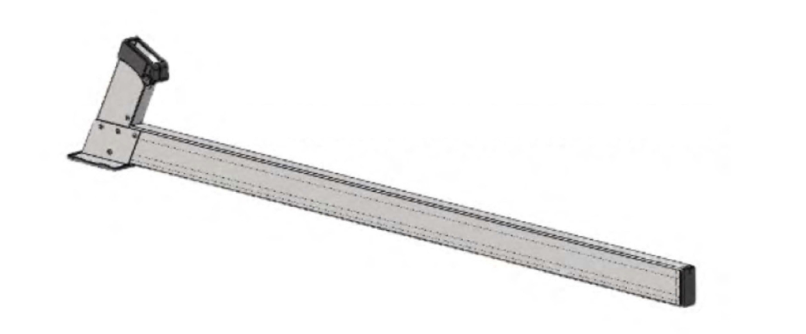

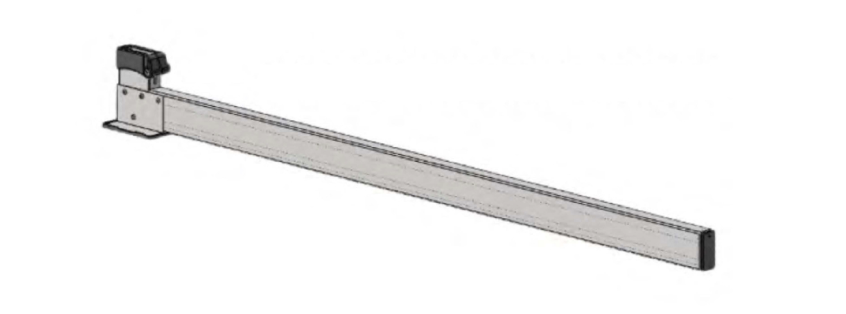

Available versions: straight base or 25° inclined (protection pad under the base).

Inclined base
Straight base

Toe-board option

  • In case of parapet < 100 mm, it is mandatory to provide a toe board.

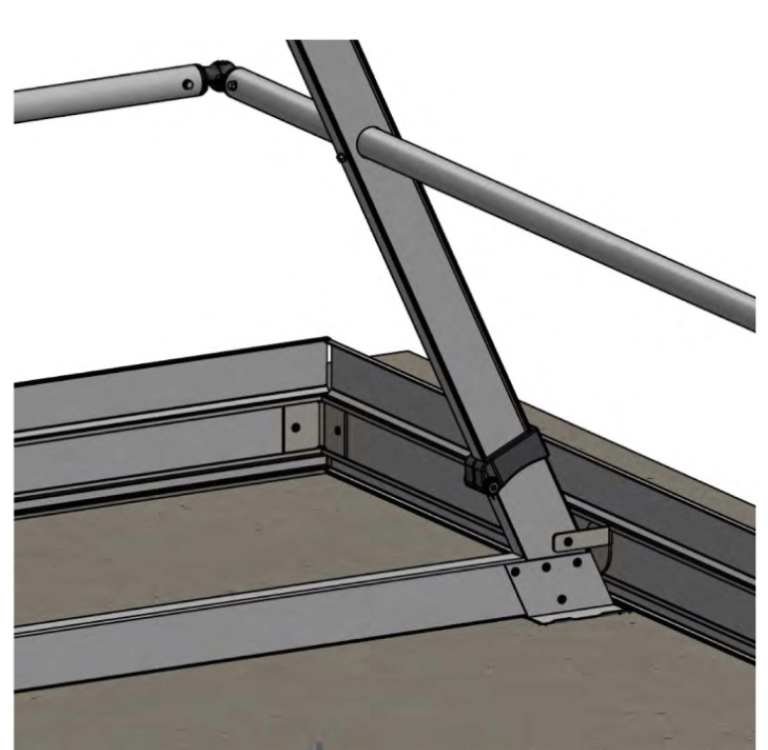

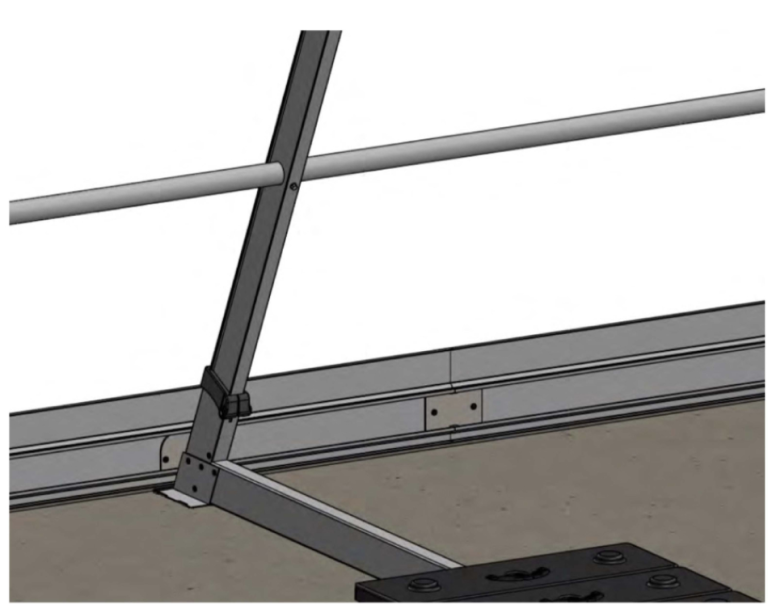

    Fixing of aluminium toe board H 180 mm

    • Toe board support for freestanding guardrail:
      • 1 x M8 x 10 mm socket screw (on the toe board).
      • 1 x Ø4.8 x 32 mm self-drilling screw H head (on the base).
    • Toe board junction:
      • 2 x M8 x 10 mm socket screws.
    • Toe board corner angle:
      • 2 x M8 x 10 mm socket screws.

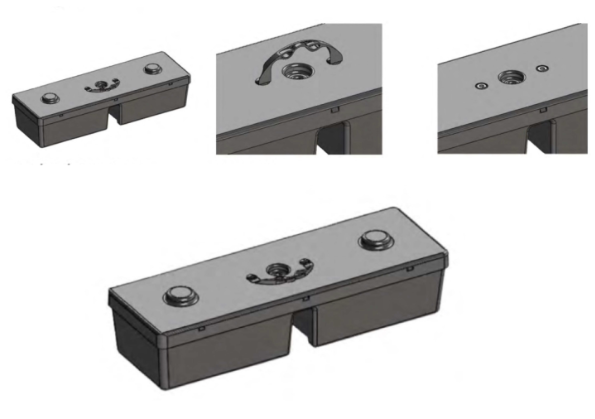

12.5kg counterweight

L= 492 I= 162 H=100mm

Recycled and recyclable PP material

Concrete filling





NEW: Cut the handle and you will get 2 x M8 fixing plugs. In this way, the counterweight is compatible with the top fix base for marking and other ballast applications.

Instalation (See instructions)

  • Distance between uprights: 1500 mm Max.
  • Presence of a stop (parapet type) required H 20 mm min.
  • Self-drilling screw Ø4.8 x 32 mm with hexagonal head:
    • Fixing the knee-rail to the upright.
    • Fixing the accessories (angle, cap, end cap) to the handrail and the knee-rail.
    • Fixing the handrails and knee-rails restrictions.
  • Self-drilling screw with hexagonal head Ø 4.8 x 50 mm for fixing the counterweights (1 per counterweight).
  • TCHC screw 8 × 45 mm (standard).
    • Screw the base to the upright.
Ref. MFFreestanding guardrails
With standard uprights fitted with a hole for the knee-rail
MF-S2M-SAFE Freestanding guardrail with straight uprights, handrail and knee-rail
MF-S3M-SAFE Freestanding guardrail with straight uprights, handrail, knee-rail and toe board
MF-12M-SAFE Freestanding guardrail with inclined uprights, handrail and knee-rail
MF-13M-SAFE Freestanding guardrail with inclined uprights, handrail, knee-rail and toe board
Ref. MFAFreestanding guardrails
With uprights without hole for height-adjustable knee-rail
MFA-S2M-SAFE Freestanding guardrail with straight uprights, handrail and knee-rail
MFA-S3M-SAFE Freestanding guardrail with straight uprights, handrail, knee-rail and toe board
MFA-12M-SAFE Freestanding guardrail with inclined uprights, handrail and knee-rail
MFA-13M-SAFE Freestanding guardrail with inclined uprights, handrail, knee-rail and toe board
