NF E 85-015 : 2019 – EN ISO 14122-3 : 2016

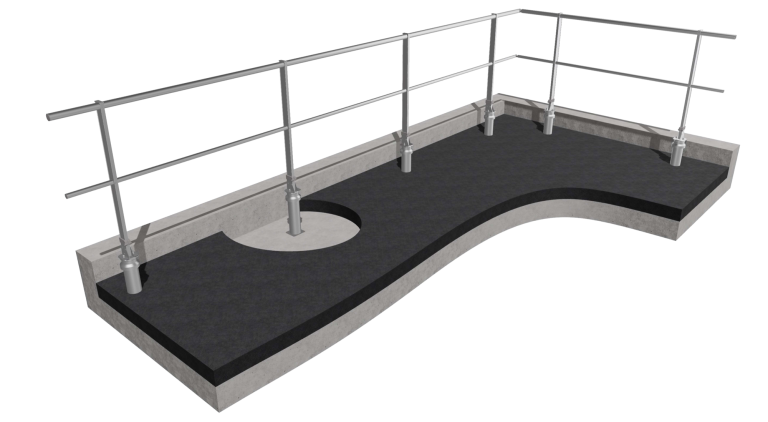

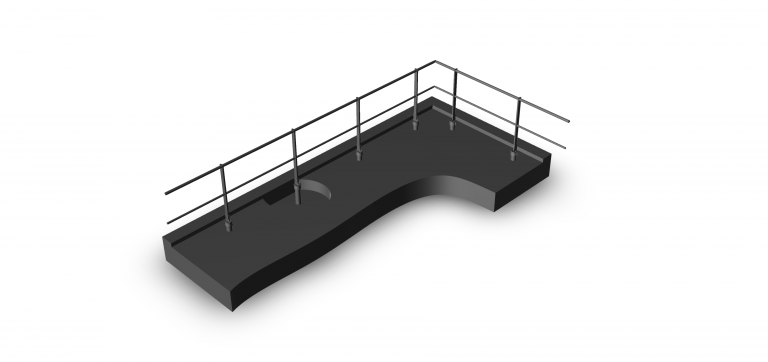

The M-SAFE guardrail for concrete roof slab to be sealed is fixed to an isolated slab using the waterproofing system through its D-Post. Available in three standard heights (300, 400 and 500 mm), they comply with DTU 43.1, the waterproofing regulations for terraces.
The M-SAFE guardrail is easy to assemble:

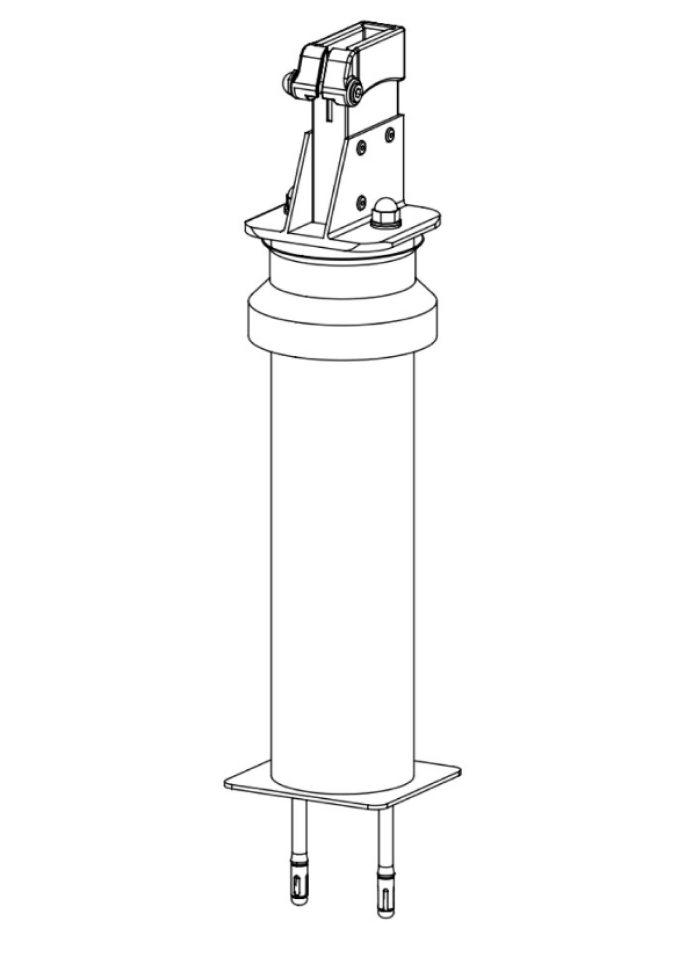

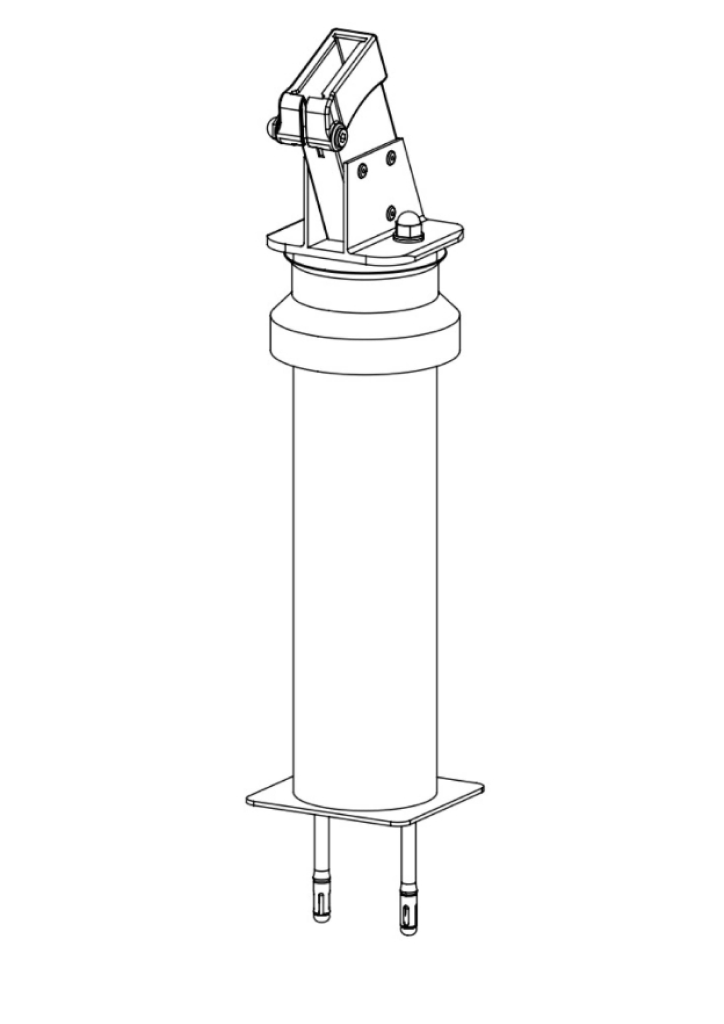

The inclination of the M-SAFE guardrail is guaranteed by the base, which is available in a straight or inclined version.
The design of the upright allows for standardization thanks to the use of the height-adjustable collar.
Three standard base heights:
WARNING : before any use, consult the relevant manual.
Installation (See instructions).
Maximum distance between uprights: 1500 mm.

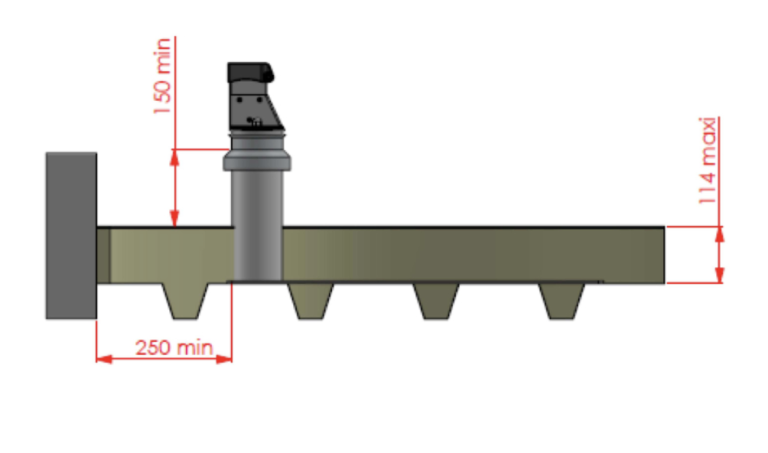

Distance to the edge of the parapet: minimum 250 mm.
Adjustable handrail angles and knee-rail for assembly.
Assembly of the upright to the base: CHC Ø8 × 45 mm screws, pre-assembled, supplied.
Base fixings in non-reinforced concrete C20/C25 using 2 x M10 plugs (optional, see forces according to the manual).
Self-drilling screw Ø4.8 x 32 mm with hexagonal head:
Complies with: EN ISO 14122-3: 2016 – NF E85-015: 2019 – NTC 2018.
| Ref. MD300 | Guardrail with top-fixed system for insulated roofs with D300 base With standard posts equipped with a hole for the knee-rail |
|---|---|
| MD300-S2 | M-SAFE guardrail with top-fixed system for insulated roofs with D300 base and straight post, with handrail and knee-rail |
| MD300-S3 | M-SAFE guardrail with top-fixed system for insulated roofs with D300 base and straight post, with handrail, knee-rail, and toe board |
| MD300-S4 | M-SAFE guardrail with top-fixed system for insulated roofs with D300 base and straight post, with handrail, two knee-rails, and toe board |
| MD300-I2 | M-SAFE guardrail with top-fixed system for insulated roofs with D300 base and inclined post, with handrail and knee-rail |
| MD300-I3 | M-SAFE guardrail with top-fixed system for insulated roofs with D300 base and inclined post, with handrail, knee-rail, and toe board |
| MD300-I4 | M-SAFE guardrail with top-fixed system for insulated roofs with D300 base and inclined post, with handrail, two knee-rails, and toe board |
| Ref. MD300A | Guardrail with top-fixed system for insulated roofs with D300A base With posts without a hole for height-adjustable knee-rail |
|---|---|
| MD300A-S2 | M-SAFE guardrail with top-fixed system for insulated roofs with D300A base and straight post, with handrail and knee-rail |
| MD300A-S3 | M-SAFE guardrail with top-fixed system for insulated roofs with D300A base and straight post, with handrail, knee-rail, and toe board |
| MD300A-S4 | M-SAFE guardrail with top-fixed system for insulated roofs with D300A base and straight post, with handrail, two knee-rails, and toe board |
| MD300A-I2 | M-SAFE guardrail with top-fixed system for insulated roofs with D300A base and inclined post, with handrail and knee-rail |
| MD300A-I3 | M-SAFE guardrail with top-fixed system for insulated roofs with D300A base and inclined post, with handrail, knee-rail, and toe board |
| MD300A-I4 | M-SAFE guardrail with top-fixed system for insulated roofs with D300A base and inclined post, with handrail, two knee-rails, and toe board |
| Ref. MD400-S2 | Guardrail with top-fixed system for insulated roofs with D400 base With standard posts equipped with a hole for the knee-rail |
|---|---|
| MD400-S2 | M-SAFE guardrail with top-fixed system for insulated roofs with D400 base and straight post, with handrail and knee-rail |
| MD400-S3 | M-SAFE guardrail with top-fixed system for insulated roofs with D400 base and straight post, with handrail, knee-rail, and toe board |
| MD400-S4 | M-SAFE guardrail with top-fixed system for insulated roofs with D400 base and straight post, with handrail, two knee-rails, and toe board |
| MD400-I2 | M-SAFE guardrail with top-fixed system for insulated roofs with D400 base and inclined post, with handrail and knee-rail |
| MD400-I3 | M-SAFE guardrail with top-fixed system for insulated roofs with D400 base and inclined post, with handrail, knee-rail, and toe board |
| MD400-I4 | M-SAFE guardrail with top-fixed system for insulated roofs with D400 base and inclined post, with handrail, two knee-rails, and toe board |
| Ref. MD400A | Guardrail with top-fixed system for insulated roofs with D400A base With posts without a hole for height-adjustable knee-rail |
|---|---|
| MD400A-S2 | M-SAFE guardrail with top-fixed system for insulated roofs with D400A base and inclined post, with handrail and knee-rail |
| MD400A-S3 | M-SAFE guardrail with top-fixed system for insulated roofs with D400A base and inclined post, with handrail, knee-rail, and toe board |
| MD400A-S4 | M-SAFE guardrail with top-fixed system for insulated roofs with D400A base and inclined post, with handrail, two knee-rails, and toe board |
| MD400A-I2 | M-SAFE guardrail with top-fixed system for insulated roofs with D400A base and inclined post, with handrail and knee-rail |
| MD400A-I3 | M-SAFE guardrail with top-fixed system for insulated roofs with D400A base and inclined post, with handrail, knee-rail, and toe board |
| MD400A-I4 | M-SAFE guardrail with top-fixed system for insulated roofs with D400A base and inclined post, with handrail, two knee-rails, and toe board |
| Ref. MD500 | Guardrail with top-fixed system for insulated roofs with D500 base With standard posts equipped with a hole for the knee-rail |
|---|---|
| MD500-S2 | M-SAFE guardrail with top-fixed system for insulated roofs with D500 base and straight post, with handrail and knee-rail |
| MD500-S3 | M-SAFE guardrail with top-fixed system for insulated roofs with D500 base and straight post, with handrail, knee-rail, and toe board |
| MD500-S4 | M-SAFE guardrail with top-fixed system for insulated roofs with D500 base and straight post, with handrail, two knee-rails, and toe board |
| MD500-I2 | M-SAFE guardrail with top-fixed system for insulated roofs with D500 base and inclined post, with handrail and knee-rail |
| MD500-I3 | M-SAFE guardrail with top-fixed system for insulated roofs with D500 base and inclined post, with handrail, knee-rail, and toe board |
| MD500-I4 | M-SAFE guardrail with top-fixed system for insulated roofs with D500 base and inclined post, with handrail, two knee-rails, and toe board |
| Ref. MD500A | Guardrail with top-fixed system for insulated roofs with D500A base With posts without a hole for height-adjustable knee-rail |
|---|---|
| MD500A-S2 | M-SAFE guardrail with top-fixed system for insulated roofs with D500A base and inclined post, with handrail and knee-railedio |
| MD500A-S3 | M-SAFE guardrail with top-fixed system for insulated roofs with D500A base and inclined post, with handrail, knee-rail, and toe board |
| MD500A-S4 | M-SAFE guardrail with top-fixed system for insulated roofs with D500A base and inclined post, with handrail, two knee-rails, and toe board |
| MD500A-I2 | M-SAFE guardrail with top-fixed system for insulated roofs with D500A base and inclined post, with handrail and knee-rail |
| MD500A-I3 | M-SAFE guardrail with top-fixed system for insulated roofs with D500A base and inclined post, with handrail, knee-rail, and toe board |
| MD500-I4 | M-SAFE guardrail with top-fixed system for insulated roofs with D500A base and inclined post, with handrail, two knee-rails, and toe board |
